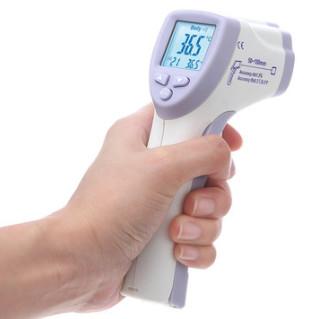

Portable Non Contact Infrared Thermometer , Medical Grade Non
Contact Temperature Gun
Human body infrared thermometer
Infrared thermometer consists of optical system, photodetector,
signal amplifier, signal processing, display output
and other parts. The optical system gathers the target infrared
radiation energy in its field of view, and the size
of the field of view is determined by the optical parts of the
thermometer and its position. The infrared energy is
focused on the photodetector and converted into a corresponding
electrical signal. The signal passes through the
amplifier and the signal processing circuit, and is converted into
the temperature value of the measured target
after being corrected according to the internal therapy algorithm
and target emissivity of the instrument.
Precautions:
1. Please read the instructions carefully before measuring, and the
forehead should be kept dry and the hair should
not cover the forehead. (Please measure in the environment of 10 ℃
-40 ℃) to ensure the accuracy of the
measurement.
2. The forehead temperature quickly measured by this product is for
reference only and should not be used as a
basis for medical judgment. If abnormal temperature is found,
please use a medical thermometer for further
measurement.
3. Please protect the sensor lens and clean it in time. If the
temperature change during use is too large, it is
necessary to place the measuring device in the environment to be
measured for 20 minutes, and then use it after it
has stably adapted to the ambient temperature, and then a more
accurate value can be measured.
| Normal body temperature range at different measurement locations |
| Measurement site | Normal temperature ℃ | Normal temperature ℉ |
| Anus | 36.6~38 | 97.8~100.4 |
| Oral cavity | 35.5~37.5 | 95.9~99.5 |
| Underarm | 34.7~37.3 | 94.4~99.1 |
| Ear | 35.8~38 | 94.6~100.4 |
| | |
| Normal body temperature range at different ages |
| Age | Normal temperature ℃ | Normal temperature ℉ |
| 0~2 | 36.4~38 | 97.5~100.4 |
| 3~10 | 36.1~37.8 | 97.0~100.0 |
| 11~65 | 35.9~37.6 | 96.6~99.7 |
| >65 | 35.8~37.5 | 96.4~99.5 |
